15 – 25 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	15 – 25 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	55.6A (4 wire) – 60Ax2 (zigzag)
Single Phase (120-240V Amps)	27.8A (4 wire) – 60A (zigzag)
Three Phase (208-240V Amps)	60A
Three Phase (460-480V Amps)	30A
Decibel dB(A) – Full load at 7 m (23ft)	56
Fuel Tank Capacity – Litres (Imp Gal)	158 (35)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	5.47 (1.20)
75% load – Litres (Imp Gal) per hour	3.99 (0.88)
50% load – Litres (Imp Gal) per hour	2.81 (0.62)
25% load – Litres (Imp Gal) per hour	1.7 (0.37)
L x W x H Cm (In) – unit w/o trailer	179 x 79 x 126 (5’10” x 2’7″ x 4’2″)
Net Weight Kg (Lb) – unit w/o trailer	835 (1840)
L x W x H Cm (In) – unit w/ trailer	284 x 140 x 152 (9’4″ x 4’7″ x 5′)
Net Weight Kg (Lb) -unit w/ trailer	1742 (3840)
NEMA Rating	3 – Outdoor Use

30 – 45 KW Wheeled Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	30 – 45 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	100A (4 wire) / 108Ax2 (zigzag)
Single Phase (120-240V Amps)	50A (4 wire) / 108A (zigzag)
Three Phase (208-240V Amps)	108A
Three Phase (460-480V Amps)	54A
Decibel dB(A) – Full load at 7 m (23ft)	57
Fuel Tank Capacity – Litres (Imp Gal)	359 (79)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	9.84 (2.16)
75% load – Litres (Imp Gal) per hour	7.47 (1.64)
50% load – Litres (Imp Gal) per hour	5.42 (1.19)
25% load – Litres (Imp Gal) per hour	3.3 (0.73)
L x W x H Cm (Ft) – unit w/o trailer	209 x 95 x 155 (6’10” x 3’1″ x 5’1″)
Net Weight Kg (Lb) – unit w/o trailer	1334 (2940)
L x W x H Cm (Ft) – unit w/ trailer	371 x 165 x 201 (12′ x 5’4″ x 6’6″)
Net Weight Kg (Lb) -unit w/ trailer	2468 (5440)
NEMA Rating	3 – Outdoor Use

30 – 45 KW Skid Type Diesel Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	30 – 45 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	100A (4 wire) / 108Ax2 (zigzag)
Single Phase (120-240V Amps)	50A (4 wire) / 108A (zigzag)
Three Phase (208-240V Amps)	108A
Three Phase (460-480V Amps)	54A
Decibel dB(A) – Full load at 7 m (23ft)	57
Fuel Tank Capacity – Litres (Imp Gal)	300 (66)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	9.84 (2.16)
75% load – Litres (Imp Gal) per hour	7.47 (1.64)
50% load – Litres (Imp Gal) per hour	5.42 (1.19)
25% load – Litres (Imp Gal) per hour	3.3 (0.73)
L x W x H Cm (In) – unit w/o skid	209 x 95 x 155 (82 x 37 x 61)
Net Weight Kg (Lb) – unit w/o skid	1334 (2940)
L x W x H Cm (In) – unit w/ skid	371 x 165 x 201 (146 x 65 x 79)
Net Weight Kg (Lb) -unit w/ skid	2468 (5440)
NEMA Rating	3 – Outdoor Use

60 – 75 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	60 – 75 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	155.5A (4 wire) / 168Ax2 (zigzag)
Single Phase (120-240V Amps)	77.8A (4 wire) / 168A (zigzag)
Three Phase (208-240V Amps)	168A
Three Phase (460-480V Amps)	84A
Decibel dB(A) – Full load at 7 m (23ft)	60
Fuel Tank Capacity – Litres (Imp Gal)	480 (106)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	18.9 (4.16)
75% load – Litres (Imp Gal) per hour	13.4 (2.95)
50% load – Litres (Imp Gal) per hour	8.9 (1.96)
25% load – Litres (Imp Gal) per hour	5.9 (1.30)
L x W x H Cm (In) – unit w/o trailer	277 x 124 x 180 (109 x 49 x 71)
Net Weight Kg (Lb) – unit w/o trailer	2127 (4690)
L x W x H Cm (In) – unit w/ trailer	434 x 183 x 213 (171 x 72 x 84)
Net Weight Kg (Lb) -unit w/ trailer	3443 (7590)
NEMA Rating	3 – Outdoor Use

110 – 125 KW Skid Type Diesel Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	110 – 125 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	277.8A (4 wire) / 301Ax2 (zigzag)
Single Phase (120-240V Amps)	138.9A (4 wire) / 301A (zigzag)
Three Phase (208-240V Amps)	301A
Three Phase (460-480V Amps)	150A
Decibel dB(A) – Full load at 7 m (23ft)	62
Fuel Tank Capacity – Litres (Imp Gal)	640 (141)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	29 (6.38)
75% load – Litres (Imp Gal) per hour	21.9 (4.82)
50% load – Litres (Imp Gal) per hour	14.5 (3.19)
25% load – Litres (Imp Gal) per hour	9.3 (2.05)
L x W x H Cm (In) – unit w/o skid	305 x 124 x 186 (120 x 49 x 73)
Net Weight Kg (Lb) – unit w/o skid	2735 (6031)
L x W x H Cm (In) – unit w/ skid	488 x 203 x 229 (192 x 80 x 90)
Net Weight Kg (Lb) -unit w/ skid	4459 (9831)
NEMA Rating	3 – Outdoor Use

110 – 125 KW Wheeled Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	110 – 125 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	277.8A (4 wire) / 301Ax2 (zigzag)
Single Phase (120-240V Amps)	138.9A (4 wire) / 301A (zigzag)
Three Phase (208-240V Amps)	301A
Three Phase (460-480V Amps)	150A
Decibel dB(A) – Full load at 7 m (23ft)	62
Fuel Tank Capacity – Litres (Imp Gal)	640 (141)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	29 (6.38)
75% load – Litres (Imp Gal) per hour	21.9 (4.82)
50% load – Litres (Imp Gal) per hour	14.5 (3.19)
25% load – Litres (Imp Gal) per hour	9.3 (2.05)
L x W x H Cm (In) – unit w/o trailer	305 x 124 x 186 (120 x 49 x 73)
Net Weight Kg (Lb) – unit w/o trailer	2735 (6031)
L x W x H Cm (In) – unit w/ trailer	488 x 203 x 229 (192 x 80 x 90)
Net Weight Kg (Lb) -unit w/ trailer	4459 (9831)
NEMA Rating	3 – Outdoor Use

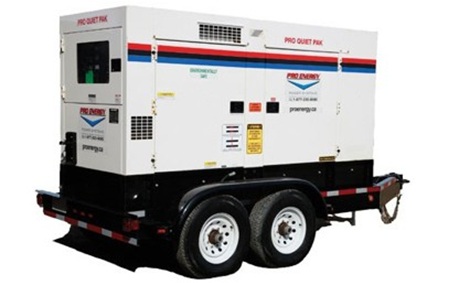

130 – 150 KW Wheeled Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	130 – 150 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	333.3A (4 wire) / 361Ax2 (zigzag)
Single Phase (120-240V Amps)	166.7A(4 wire) / 361A(zigzag)
Three Phase (208-240V Amps)	361A
Three Phase (460-480V Amps)	180A
Decibel dB(A) – Full load at 7 m (23ft)	63
Fuel Tank Capacity – Litres (Imp Gal)	810(178)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	34.8(7.65)
75% load – Litres (Imp Gal) per hour	26.1(5.74)
50% load – Litres (Imp Gal) per hour	17.9(3.94)
25% load – Litres (Imp Gal) per hour	11(2.42)
L x W x H Cm (In) – unit w/o trailer	325 x 124 x 191 (128 x 49 x 75)
Net Weight Kg (Lb) – unit w/o trailer	3035 (6690)
L x W x H Cm (In) – unit w/ trailer	488 x 208 x 236 (192 x 82 x 93)
Net Weight Kg (Lb) -unit w/ trailer	4758 (10490)
NEMA Rating	3 – Outdoor Use

130 – 150 KW Twin Pak Diesel Generator

Specifications

Specifications	Generator – Twin
Type	Skidded
Output	130 – 150 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	12-30A / 4 Pole Twist Lock
Three Phase (208-240V Amps)	2-30A / 2-60A / 2-100A 4 Wire / 4 Pole Crouse Hines
Three Phase (460-480V Amps)	2-30A / 2-60A / 2-100A 3 Wire / 4 Pole Crouse Hines
Decibel dB(A) – Full load at 7 m (23ft)	63
Fuel Tank Capacity – Litres (Imp Gal)	2270 (500)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	34.8 (7.65)
75% load – Litres (Imp Gal) per hour	26.1 (5.74)
50% load – Litres (Imp Gal) per hour	17.9 (3.94)
25% load – Litres (Imp Gal) per hour	11 (2.42)
L x W x H Cm (In) – unit w/o skid	325 x 124 x 191 (128 x 49 x 75)
Net Weight Kg (Lb) – unit w/o skid	3035 (6690)
L x W x H Cm (In) – unit w/ skid	488 x 208 x 236 (192 x 82 x 93)
Net Weight Kg (Lb) -unit w/ skid	12,727 (28,000)
NEMA Rating	3 – Outdoor Use

130 – 150 KW Skid Type Diesel Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	130 – 150 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	333.3A (4 wire) / 361Ax2 (zigzag)
Single Phase (120-240V Amps)	166.7A (4 wire) / 361A (zigzag)
Three Phase (208-240V Amps)	361A
Three Phase (460-480V Amps)	180A
Decibel dB(A) – Full load at 7 m (23ft)	63
Fuel Tank Capacity – Litres (Imp Gal)	973 (214)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	34.8 (7.65)
75% load – Litres (Imp Gal) per hour	26.1 (5.74)
50% load – Litres (Imp Gal) per hour	17.9 (3.94)
25% load – Litres (Imp Gal) per hour	11 (2.42)
L x W x H Cm (Ft) – unit w/o skid	325 x 124 x 191 (12’8″ x 4’1″ x 6’3″)
Net Weight Kg (Lb) – unit w/o skid	3035 (6690)
L x W x H Cm (Ft) – unit w/ skid	488 x 152 x 214 (16′ x 5’1″ x 7’4″)
Net Weight Kg (Lb) -unit w/ skid	4758 (10490)
NEMA Rating	3 – Outdoor Use

175 – 200 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	175 – 200 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	489.9A (4 wire)
Single Phase (120-240V Amps)	244.4A (4 wire)
Three Phase (208-240V Amps)	529A
Three Phase (460-480V Amps)	265A
Decibel dB(A) – Full load at 7 m (23ft)	68
Fuel Tank Capacity – Litres (Imp Gal)	454 (100)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	51.6 (11.35)
75% load – Litres (Imp Gal) per hour	39.5 (8.69)
50% load – Litres (Imp Gal) per hour	29.3 (6.45)
25% load – Litres (Imp Gal) per hour	17.2 (3.78)
L x W x H Cm (Ft) – unit w/o trailer	355 x 124 x 170 (11’6″ x 4’1″ x 5’7″)
Net Weight Kg (Lb) – unit w/o trailer	3182 (7016)
L x W x H Cm (In) – unit w/ trailer	518 x 198 x 229 (16′ x 5’1″ x 6’7″)
(wet) Net Weight Kg (Lb)	5042 (11116)
NEMA Rating	3 Outdoor Use

200 – 220 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	200 – 220 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	555.5A (4 wire)
Single Phase (120-240V Amps)	277.7A (4 wire)
Three Phase (208-240V Amps)	601A
Three Phase (460-480V Amps)	301A
Decibel dB(A) – Full load at 7 m (23ft)	68
Fuel Tank Capacity – Litres (Imp Gal)	454 (100)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	55.8 (12.27)
75% load – Litres (Imp Gal) per hour	41.2 (9.06)
50% load – Litres (Imp Gal) per hour	28.5 (6.27)
25% load – Litres (Imp Gal) per hour	16.6 (3.65)
L x W x H Cm (Ft) – unit w/o skid	375 x 140 x 180 (12’2″ x 4’7″ x 5’11”)
Net Weight Kg (Lb) – unit w/o skid	4220 (9305)
L x W x H Cm (Ft) – unit w/ skid	544 x 198 x 267 (16′ x 5’1″ x 6’7″)
Net Weight Kg (Lb) -unit w/ skid	6398 (14105)
NEMA Rating	3 Outdoor Use

250 – 300 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	250 – 300 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	555.5A (4 wire)
Single Phase (120-240V Amps)	277.7A (4 wire)
Three Phase (208-240V Amps)	601A
Three Phase (460-480V Amps)	301A
Decibel dB(A) – Full load at 7 m (23ft)	68
Fuel Tank Capacity – Litres (Imp Gal)	460 (101)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	55.8 (12.27)
75% load – Litres (Imp Gal) per hour	41.2 (9.06)
50% load – Litres (Imp Gal) per hour	28.5 (6.27)
25% load – Litres (Imp Gal) per hour	16.6 (3.65)
L x W x H Cm (In) – unit w/o skid	375 x 140 x 180 (146 x 55 x 71)
Net Weight Kg (Lb) – unit w/o skid	4220 (9305)
L x W x H Cm (In) – unit w/ skid	544 x 198 x 267 (214 x 78 x 105)
Net Weight Kg (Lb) -unit w/ skid	6398 (14105)
NEMA Rating	3 Outdoor Use

300 – 400 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	300 – 400 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	888.9A (4 wire)
Single Phase (120-240V Amps)	444.4A (4 wire)
Three Phase (208-240V Amps)	962A
Three Phase (460-480V Amps)	481A
Decibel dB(A) – Full load at 7 m (23ft)	67
Fuel Tank Capacity – Litres (Imp Gal)	490 (108)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	87.3 (19.20)
75% load – Litres (Imp Gal) per hour	68.1 (14.98)
50% load – Litres (Imp Gal) per hour	48.8 (10.73)
25% load – Litres (Imp Gal) per hour	29.7 (6.53)
L x W x H Cm (In) – unit w/o trailer	460 x 140 x 210 (181 x 55 x 83)
Net Weight Kg (Lb) – unit w/o trailer	5432 (11973)
L x W x H Cm (In) – unit w/ trailer	650 x 206 x 279 (256 x 81 x 110)
Net Weight Kg (Lb) -unit w/ trailer	7018 (15473)
NEMA Rating	3 – Outdoor Use

500 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	500 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 – 280/120
Voltage- Single Phase	N/A
Single Phase (120V Amps)	1735
Single Phase (120-240V Amps)	1500
Three Phase (208-240V Amps)	1500
Three Phase (460-480V Amps)	750
Decibel dB(A) – Full load at 7 m (23ft)	72
Fuel Tank Capacity – Litres (Imp Gal)	2650 (700)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	136 (35.9)
75% load – Litres (Imp Gal) per hour	107 (28.3)
50% load – Litres (Imp Gal) per hour	78 (20.5)
25% load – Litres (Imp Gal) per hour	40 (11)
L x W x H Cm (In) – unit w/o trailer	6096 x 2438 x 2491 (240 x 96 x 102)
Net Weight Kg (Lb) – unit w/o trailer	10,247 (22,590)
L x W x H Cm (In) – unit w/ trailer	6096 x 2438 x 3810 (240 x 96 x 150)
Net Weight Kg (Lb) -unit w/ trailer	13,626 (30,040)
NEMA Rating	3 – Outdoor Use

500 – 650 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	500 – 650 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 (ONLY)
Voltage- Single Phase	N/A
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (208-240V Amps)	N/A
Three Phase (460-480V Amps)	900A
Decibel dB(A) – Full load at 7 m (23ft)	71
Fuel Tank Capacity – Litres (Imp Gal)	2270 (500)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	128.3 (28.22)
75% load – Litres (Imp Gal) per hour	101.1 (22.24)
50% load – Litres (Imp Gal) per hour	65.9 (14.50)
25% load – Litres (Imp Gal) per hour	40.1 (8.82)
L x W x H Cm (In) – unit w/o skid	747 x 244 x 274 (294 x 96 x 108)
Net Weight Kg (Lb) – unit w/o skid	10206 (22500)
L x W x H Cm (In) – unit w/ skid	747 x 244 x 401 (294 x 96 x 158)
Net Weight Kg (Lb) -unit w/ skid	13599 (29980)
NEMA Rating	3 – Outdoor Use

600 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	600 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 V
Voltage- Single Phase	N/A
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (208-240V Amps)	N/A
Three Phase (460-480V Amps)	820 A
Decibel dB(A) – Full load at 7 m (23ft)	72
Fuel Tank Capacity – Litres (Imp Gal)	2650 (700)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	136 (35.9)
75% load – Litres (Imp Gal) per hour	107 (28.3)
50% load – Litres (Imp Gal) per hour	78 (20.5)
25% load – Litres (Imp Gal) per hour	40 (11)
L x W x H Cm (In) – unit w/o trailer	609.6 x 243.84 x 279.4 (240 x 96 x 110)
Net Weight Kg (Lb) – unit w/o trailer	10,247 (22,590)
L x W x H Cm (In) – unit w/ trailer	914.4 x 243.84 x 396.24 (360 x 96 x 156 )
Net Weight Kg (Lb) -unit w/ trailer	13,626 (30,040)
NEMA Rating	3 – Outdoor Use

800 – 1000 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	800 – 1000 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 (ONLY)
Voltage- Single Phase	N/A
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (208-240V Amps)	N/A
Three Phase (460-480V Amps)	1504A
Decibel dB(A) – Full load at 7 m (23ft)	66
Fuel Tank Capacity – Litres (Imp Gal)	3787 (833)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	295.5 (65.00)
75% load – Litres (Imp Gal) per hour	201.8 (44.39)
50% load – Litres (Imp Gal) per hour	138.7 (30.51)
25% load – Litres (Imp Gal) per hour	77.5 (17.05)
L x W x H Cm (In) – unit w/o trailer	1219 x 244 x 290 (480 x 96 x 114)
Net Weight Kg (Lb) – unit w/o trailer	17445 (38460)
L x W x H Cm (In) – unit w/ trailer	1219 x 244 x 417 (480 x 96 x 164)
Net Weight Kg (Lb) -unit w/ trailer	20502 (45200)
NEMA Rating	3 – Outdoor Use

1250 – 1500 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	1250 – 1500 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 (ONLY)
Voltage- Single Phase	N/A
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (208-240V Amps)	N/A
Three Phase (460-480V Amps)	2258A
Decibel dB(A) – Full load at 7 m (23ft)	67
Fuel Tank Capacity – Litres (Imp Gal)	3787 (833)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	393 (86.45)
75% load – Litres (Imp Gal) per hour	298 (65.55)
50% load – Litres (Imp Gal) per hour	211 (46.41)
25% load – Litres (Imp Gal) per hour	124 (27.28)
L x W x H Cm (In) – unit w/o trailer	1219 x 244 x 290 (480 x 96 x 114)
Net Weight Kg (Lb) – unit w/o trailer	21083 (46480)
L x W x H Cm (In) – unit w/ trailer	1219 x 244 x 417 (480 x 96 x 164)
Net Weight Kg (Lb) -unit w/ trailer	24140 (53220)
NEMA Rating	3 – Outdoor Use

1750 – 2000 KW Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	1750 – 2000 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 (ONLY)
Voltage- Single Phase	N/A
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (208-240V Amps)	N/A
Three Phase (460-480V Amps)	3000A
Decibel dB(A) – Full load at 7 m (23ft)	68
Fuel Tank Capacity – Litres (Imp Gal)	4546 (1000)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	498 (109.54)
75% load – Litres (Imp Gal) per hour	378 (83.15)
50% load – Litres (Imp Gal) per hour	271 (59.61)
25% load – Litres (Imp Gal) per hour	167 (36.73)
L x W x H Cm (In) – unit w/o trailer	1219 x 244 x 290 (480 x 96 x 114)
Net Weight Kg (Lb) – unit w/o trailer	27669 (61000)
L x W x H Cm (In) – unit w/ trailer	1219 x 244 x 417 (480 x 96 x 164)
Net Weight Kg (Lb) -unit w/ trailer	31253 (68900)
NEMA Rating	3 – Outdoor Use

60 – 75 KW Single Pak Diesel Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	60 – 75 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	155.5A (4 wire) / 168Ax2 (zigzag)
Single Phase (120-240V Amps)	77.8A (4 wire) / 168A (zigzag)
Three Phase (208-240V Amps)	168A
Three Phase (460-480V Amps)	84A
Decibel dB(A) – Full load at 7 m (23ft)	60
Fuel Tank Capacity – Litres (Imp Gal)	480 (106)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	18.9 (4.16)
75% load – Litres (Imp Gal) per hour	13.4 (2.95)
50% load – Litres (Imp Gal) per hour	8.9 (1.96)
25% load – Litres (Imp Gal) per hour	5.9 (1.30)
L x W x H Cm (In) – unit w/o skid	277 x 124 x 180 (109 x 49 x 71)
Net Weight Kg (Lb) – unit w/o skid	2127 (4690)
L x W x H Cm (In) – unit w/ skid	434 x 183 x 213 (171 x 72 x 84)
Net Weight Kg (Lb) -unit w/ skid	3443 (7590)
NEMA Rating	3 – Outdoor Use

60 – 75 KW Twin Pak Diesel Generator

Specifications

Specifications	Generator – Twin
Type	Skidded
Output	60 – 75 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	155.5A (4 wire) / 168Ax2 (zigzag)
Single Phase (120-240V Amps)	77.8A (4 wire) / 168A (zigzag)
Three Phase (208-240V Amps)	168A
Three Phase (460-480V Amps)	84A
Decibel dB(A) – Full load at 7 m (23ft)	60
Fuel Tank Capacity – Litres (Imp Gal)	1800L (396)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	18.9 (4.16)
75% load – Litres (Imp Gal) per hour	13.4 (2.95)
50% load – Litres (Imp Gal) per hour	8.9 (1.96)
25% load – Litres (Imp Gal) per hour	5.9 (1.30)
L x W x H Cm (In) – unit w/o skid	277 x 124 x 180 (109 x 49 x 71)
Net Weight Kg (Lb) – unit w/o skid	2127 (4690)
L x W x H Cm (In) – unit w/ skid	434 x 183 x 213 (171 x 72 x 84)
Net Weight Kg (Lb) -unit w/ skid	3443 (7590)
NEMA Rating	3 – Outdoor Use

80 – 100 KW Twin Pak Diesel Generator

Specifications

Specifications	Generator – Twin
Type	Skidded
Output	80 – 100 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Primary Voltage – Three Phase	120 / 208
Secondary Voltage – Three Phase	277 / 480
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	12-30A 4 Pole Twist Lock
Three Phase (208-240V Amps)	2-30A / 2-60A / 2-100A 4 wire/4 pole Crouse Hines
Three Phase (460-480V Amps)	2-30A / 2-60A / 2-100A 3 wire/4 pole Crouse Hines
Decibel dB(A) – Full load at 7 m (23ft)	68
Fuel Tank Capacity – Litres (Imp Gal)	2270 (500)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	25.7(5.7)
75% load – Litres (Imp Gal) per hour	21(4.6)
50% load – Litres (Imp Gal) per hour	14.7(3.2)
25% load – Litres (Imp Gal) per hour	6.3(1.4)
L X W X H m (ft)	7.62 X 3.05 X 2.44 (25 X 10 X 8)
(wet) Net Weight Kg (Lb)	12,727 Kg (28,000)
NEMA Rating	3 – Outdoor Use

80 – 100 KW Twin Pak Combined Fuel Diesel And Natural Gas Generator

Specifications

Specifications	Generator – Twin
Type	Skidded
Output	80 – 100 KW
Fuel	Bi-Fuel
RPM	1800
Frequency	60HZ
Primary Voltage – Three Phase	120 / 208v
Secondary Voltage – Three Phase	277 / 480v
Voltage – Single Phase	N/A
Single Phase (206-240V Amps)	2-30A / 2-60A / 2-100A 4 wire/4 pole Crouse Hines
Three Phase (460-480v Amps)	2-30A / 2-60A / 2-100A 3 wire/4 pole Crouse Hines
Decibel dB(A) – Full load at 7 m (23ft)	68
Fuel Tank Capacity – Litres (Imp Gal)	2270 (500)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	25.7(5.7)
Net Weight Kg (Lb)- unit w/ slkid	12,727 Kg (28,000)
NEMA Rating	3 – Outdoor Use

175 – 225 KW Skid Type Diesel Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	175 – 225 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Primary Voltage – Three Phase	480
Secondary Voltage – Three Phase	120/208
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (120 / 208 Amps Sec)	75 Kva transformer
Three Phase (460-480V Amps)	N/A
Decibel dB(A) – Full load at 7 m (23ft)	68
Fuel Tank Capacity – Litres (Imp Gal)	2270 (500)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	60 (19.5)
75% load – Litres (Imp Gal) per hour	45 (13.2)
50% load – Litres (Imp Gal) per hour	40 (8.8)
25% load – Litres (Imp Gal) per hour	20 (4.4)
L X W X H m (ft)	7.62 x 3.05 x 2.44 (25 x 10 x 8)
(wet) Net Weight Kg (Lb)	12,727kg (28,000)
NEMA Rating	3 Outdoor Use

175 – 225 KW Wheeled Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	175 – 225 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Voltage- Three Phase	208 – 480V Switchable
Voltage- Single Phase	120 – 277V Switchable
Single Phase (120V Amps)	555.5A (4 wire)
Single Phase (120-240V Amps)	277.7A (4 wire)
Three Phase (208-240V Amps)	601A
Three Phase (460-480V Amps)	301A
Decibel dB(A) – Full load at 7 m (23ft)	68
Fuel Tank Capacity – Litres (Imp Gal)	460 (101)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	55.8 (12.27)
75% load – Litres (Imp Gal) per hour	41.2 (9.06)
50% load – Litres (Imp Gal) per hour	28.5 (6.27)
25% load – Litres (Imp Gal) per hour	16.6 (3.65)
L x W x H Cm (In) – unit w/o trailer	375 x 140 x 180 (146 x 55 x 71)
Net Weight Kg (Lb) – unit w/o trailer	4220 (9305)
L x W x H Cm (In) – unit w/ trailer	544 x 198 x 267 (214 x 78 x 105)
Net Weight Kg (Lb) -unit w/ trailer	6398 (14105)
NEMA Rating	3 Outdoor Use

300 – 425 KW Single Pak Diesel Generator

Specifications

Specifications	Generator – Single
Type	Wheeled
Output	300 – 425 KW
Fuel	Diesel
RPM	1800
Frequency	60HZ
Primary Voltage- Three Phase	480V
Secondary Voltage- Three Phase	208V
Voltage – Single Phase	NA
Single Phase (Amps)	N/A
Three Phase (480V Amps)	639.45A
Three Phase (208Amps)	1475A
Decibel dB(A) – Full load at 7 m (23ft)	67
Fuel Tank Capacity – Litres (Imp Gal)	2270(500)
Fuel Consumption at 100% load Litres (Imp Gal)per hour	108.2(23.81)
75% load – Litres (Imp Gal) per hour	80.6(17.74)
50% load – Litres (Imp Gal) per hour	56.4(12.41)
25% load – Litres (Imp Gal) per hour	33.7(7.41)
L x W x H Cm (In) – unit w/o skid	762 x 244 x 335 (300 x 96 x 132)
Net Weight Kg (Lb) – unit w/o skid	13,608 (30,000)
NEMA Rating	3 – Outdoor Use

80 – 100 KW Natural Gas / Propane Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	80 – 100 KW
Fuel	Natural Gas / Propane Conversion
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 (ONLY)
Three Phase (460-480V Amps)	150
Decibel dB(A) – Full load at 7 m (23ft)	63
100% load BTU/hr ft³/hr ft³/min	1918825.0 2019.8 33.7
75% load BTU/hr ft³/hr ft³/min	1398764.4 1472.4 24.5
50% load BTU/hr ft³/hr ft³/min	932509.6 981.6 16.4
25% load BTU/hr ft³/hr ft³/min	457112.8 481.25 8.25
(wet) Net Weight Kg (Lb)	10,455 (23,000)
NEMA Rating	3 – Outdoor Use

130 – 150 KW Natural Gas / Propane Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	130 – 150 KW
Fuel	Natural Gas / Propane Conversion
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 (ONLY)
Voltage- Single Phase	N/A
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (208-240V Amps)	N/A
Three Phase (460-480V Amps)	225
Decibel dB(A) – Full load at 7 m (23ft)	63
100% load BTU/hr ft³/hr ft³/min	1918825.0 2019.8 33.7
75% load BTU/hr ft³/hr ft³/min	1398764.4 1472.4 24.5
50% load BTU/hr ft³/hr ft³/min	932509.6 981.6 16.4
25% load BTU/hr ft³/hr ft³/min	457112.8 481.25 8.25
L x W x H Cm (In) – Skid Type Unit	762 x 244 x 310 (300 x 96 x 122)
Net Weight Kg (Lb) – Skid Type Unit	10,455 (23,000)
NEMA Rating	3 – Outdoor Use

190 – 240 KW Natural Gas / Propane Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	190 – 240 KW
Fuel	Natual Gas / Propane Conversion
RPM	1800
Frequency	60HZ
Volatge- Three Phase	480 (ONLY)
Volatge- Single Phase	N/A
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (208-240V Amps)	N/A
Three Phase (460-480V Amps)	360
Decibel dB(A) – Full load at 7 m (23ft)	64
100% load BTU/hr ft³/hr ft³/min	2,398 39.9
75% load BTU/hr ft³/hr ft³/min	1,912 31.8
50% load BTU/hr ft³/hr ft³/min	1,418 23.6
L x W x H Cm (In) – Skid Type Unit	762 x 244 x 310 (300 x 96 x 122)
Net Weight Kg (Lb) – Skid Type Unit	13,200 (29,000)
NEMA Rating	3 – Outdoor Use

300 – 400 KW Natural Gas Generator

Specifications

Specifications	Generator – Single
Type	Skidded
Output	300-400 KW
Fuel	Natural Gas
RPM	1800
Frequency	60HZ
Voltage- Three Phase	480 (ONLY)
Voltage- Single Phase	N/A
Single Phase (120V Amps)	N/A
Single Phase (120-240V Amps)	N/A
Three Phase (208-240V Amps)	N/A
Three Phase (460-480V Amps)	600
Decibel dB(A) – Full load at 7 m (23ft)	64
100% load BTU/hr ft³/hr ft³/min	4,472 74.5
75% load BTU/hr ft³/hr ft³/min	3,576 59.6
50% load BTU/hr ft³/hr ft³/min	2,702 45
L x W x H Cm (In) – Skid Type Unit	1372 x 305 x 366 (540 x 120 x 144)
Net Weight Kg (Lb) – Skid Type Unit	22,000 (49,000)
NEMA Rating	3 – Outdoor Use

Pro Energy Generators

Providing Power Solutions To all Industries

15 – 25 KW Diesel Generator

30 – 45 KW Wheeled Diesel Generator

30 – 45 KW Skid Type Diesel Generator

60 – 75 KW Diesel Generator

110 – 125 KW Skid Type Diesel Generator

110 – 125 KW Wheeled Diesel Generator

130 – 150 KW Wheeled Diesel Generator

130 – 150 KW Twin Pak Diesel Generator

130 – 150 KW Skid Type Diesel Generator

175 – 200 KW Diesel Generator

200 – 220 KW Diesel Generator

250 – 300 KW Diesel Generator

300 – 400 KW Diesel Generator

500 KW Diesel Generator

500 – 650 KW Diesel Generator

600 KW Diesel Generator

800 – 1000 KW Diesel Generator

1250 – 1500 KW Diesel Generator

1750 – 2000 KW Diesel Generator

60 – 75 KW Single Pak Diesel Generator

60 – 75 KW Twin Pak Diesel Generator

80 – 100 KW Twin Pak Diesel Generator

80 – 100 KW Twin Pak Combined Fuel Diesel And Natural Gas Generator

175 – 225 KW Skid Type Diesel Generator

175 – 225 KW Wheeled Diesel Generator

300 – 425 KW Single Pak Diesel Generator

80 – 100 KW Natural Gas / Propane Generator

130 – 150 KW Natural Gas / Propane Generator

190 – 240 KW Natural Gas / Propane Generator

300 – 400 KW Natural Gas Generator

Dependable Power. Proven Performance

Request A Quote
